Basic specifications
| Measurement line type | Single-phase 2-wire, Single-phase 3-wire, Three-phase 3-wire or Three-phase 4-wire plus one extra input channel (must be synchronized to reference channel during AC/DC measurement) | | Voltage ranges | Voltage measurement: 600.00 V rms
Transient measurement 6.0000 kV peak | | Current ranges | 500.00 mA to 5.0000 kA AC (depends on current sensor in use) | | Basic accuracy | Voltage: ±0.1% of nominal voltage
Current: ±0.2% rdg. ±0.1% f.s. + current sensor accuracy
Active power: ±0.2% rdg. ±0.1% f.s. + current sensor accuracy | | Measurement items | - Transient over voltage : 2MHz sampling.
- Frequency cycle : Calculated as one cycle, 40 to 70Hz
- Voltage (1/2) RMS: one cycle calculation refreshed every half cycle.
Current (1/2) RMS: half-cycle calculation. - Voltage swell, Voltage dips, Voltage interruption
- Inrush current
- Voltage waveform comparison
- Instantaneous flicker value: As per IEC61000-4-15
- Frequency: Calculated as 10 or 12 cycles, 40 to 70Hz
- 10-sec frequency: Calculated as the whole-cycle time during the specified 10s period, 40 to 70Hz
- Voltage waveform peak, Current waveform peak
- Voltage, Current, Active power, Apparent power, Reactive power, Active energy, Reactive energy, Power factor, Displacement power factor, Voltage unbalance factor, Current unbalance factor (negative-phase, zero-phase)
- High-order harmonic component (voltage/ current): 2kHz to 80kHz
- Harmonic/ Harmonic phase angle (voltage/ current), Harmonic power: 0th to 50th orders
- Harmonic voltage-current phase angle: 1th to 50th orders
- Total harmonic distortion factor (voltage/ current)
- Inter harmonic (voltage/ current): 0.5Hz to 49.5Hz
- K Factor (multiplication factor)
- IEC Flicker, Δ V10 Flicker
| | Record | 55 weeks (with repeated recording set to [1 Week], 55 iterations)
35 days (with repeated recording set to [OFF]) | | Interface | SD/SDHC card, RS-232C, LAN (HTTP server funtion), USB2.0 | | Display | 6.5-inch TFT color LCD (640×480 dots) | | Power supply | AC ADAPTER Z1002 (12V DC, Rated power supply 100V AC to 24 V AC, 50/60Hz)
BATTERY PACK Z1003 (Ni-MH 7.2V DC 4500mAh) | | Dimensions, mass | 300mm(11.81in)W × 211mm(8.31in)H × 68mm(2.68in)D (excluding protrusions), 2.6kg(91.7oz) (including battery pack) | | Supplied accessories | Instruction manual×1, Measurement guide×1, VOLTAGE CORD L1000×1 set, Spiral Tube×1, Input Cable Labels×1, AC ADAPTER Z1002×1, Strap×1, USB cable (1m 3.28ft length)×1, BATTERY PACK Z1003×1, SD MEMORY CARD 2GB Z4001×1 |
|

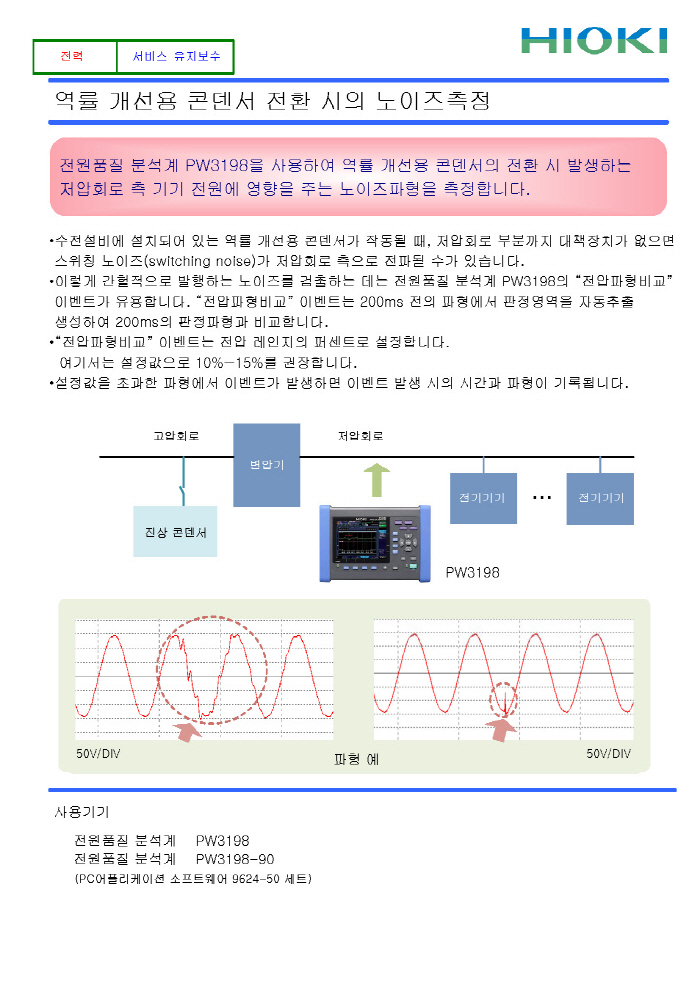

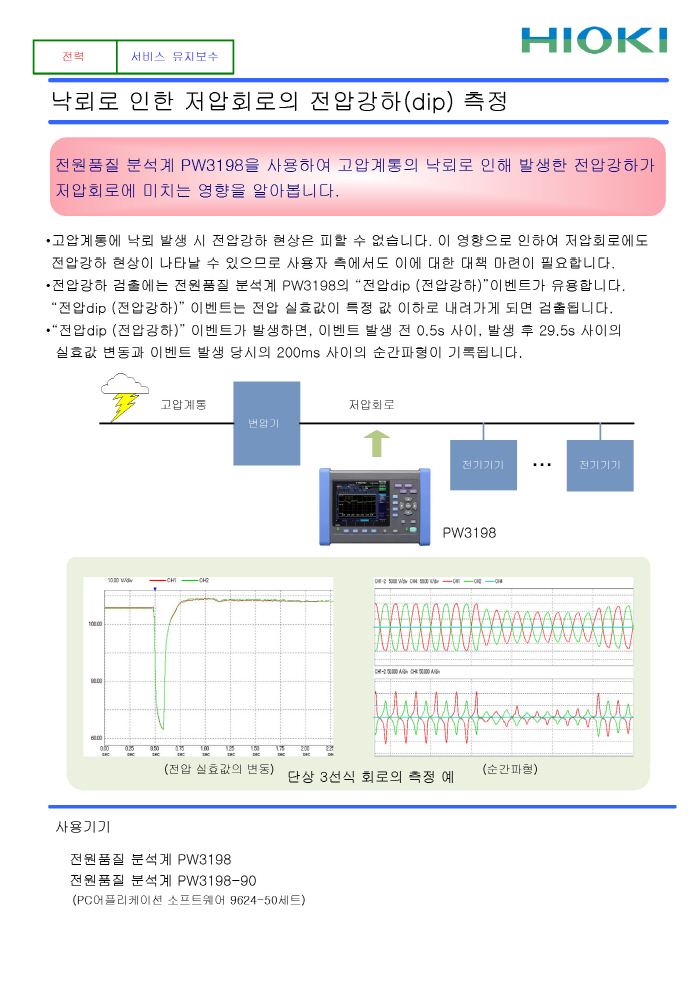

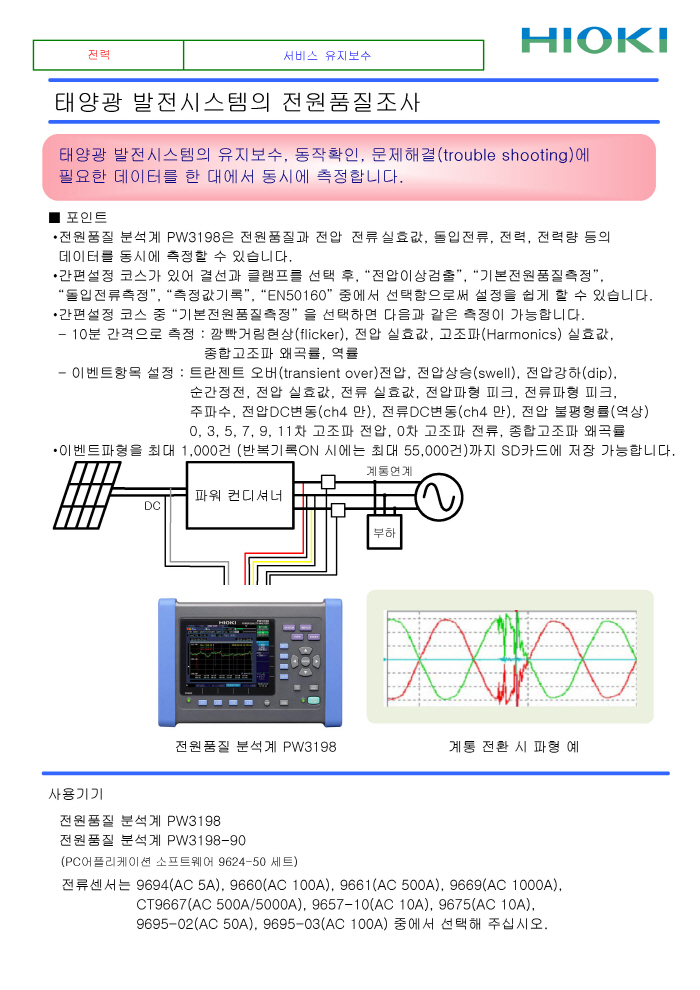

제품번호 : PW3198
